EarthquakeSound TW-25S Eyeball High Definition Neo-Tweeters

TW-25S
77,00 € Maksudeta
93.94 € tax incl. for EU buyers

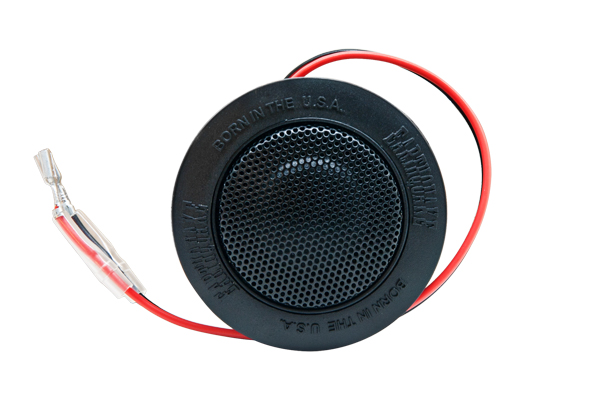

EarthquakeSound TW-25S Eyeball High Definition 25mm Neo-Tweeters, Silk Dome, 12dB xover in line, Multi-Mount

Kogus
Toodete saadavus tellimisel

TW-25S






Earthquake Neo tweeters deliver the SPL to keep up with the rest of your Earthquake system. Made with real silk, Neo tweeters are thin but strong. They use floating rubber suspension mechanisms, aluminum voice coils, and silk dome diaphragms for the most clear and accurate sound. Installation is made easy with Earthquake’s patented Turn-N-Lock devices that allow flush, surface and angle mounting.


Sold and priced per set.


Comes with:

  • Two 25mm Eyeball High Definition Neo-Tweeters
  • Two Angled Mounts
  • Two Crossovers
  • Mounting Hardware

Features:

  • Silk dome
  • 12dB/Octave high pass filter @ 6000 HZ
  • Raychem poly-switch protection
  • Floating rubber suspension
  • Flush / Surface / Angle mount options

Specifications:

  • Model nr.: TW-25S
  • EAN: 1-301668-975976
  • Tweeter: 1” (25m) silk dome
  • Neodymium magnet
  • Rec. Amp Power: 160 Watts Max
  • Frequency Response: 2kHz – 22kHz (+/- 3dB)
  • 90dB @ 1W/1M Sensitivity
  • 4-Ohm Impedance
  • Poly switch tweeter protection
  • Fs: 1499 Hz

Specifications:

  • Re: 2.87 ohm
  • Qts:1.27
  • Qes:4.41
  • Qms:1.79



TW-25S Manual

TW-25S Product Release

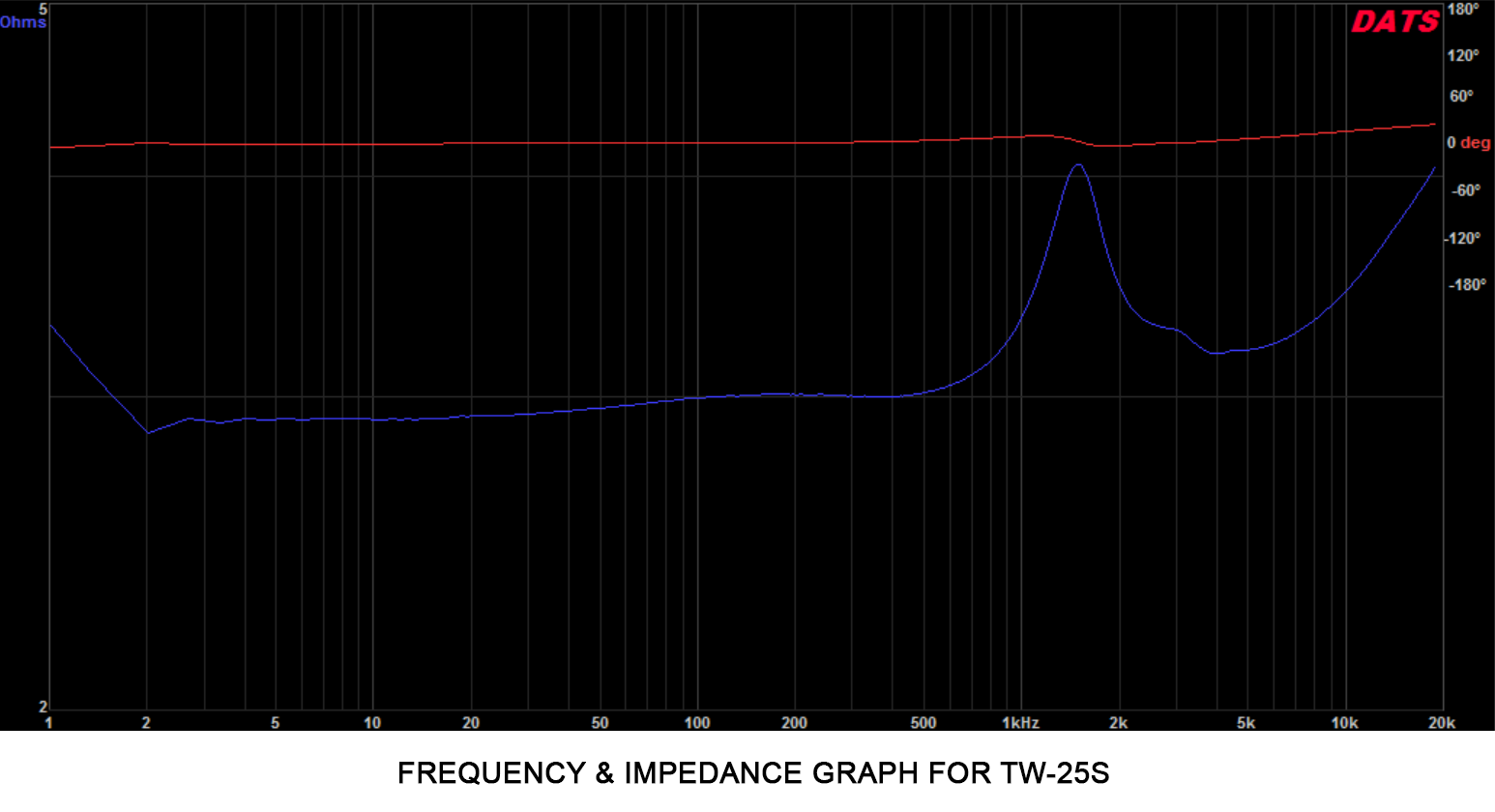

Impedance & Frequency Graph for TW-25S

TW-25S
