Accuton ceramic bass, C173-6-096-E

C173-6-096-E
557,38 € Без НДС
680.00 € с НДС для покупателей из ЕС

Accuton ceramic bass, C173-6-096-E

Количество
Товары, которые можно заказывать

Ceramic Bass-Midrange Driver

Domematerial Ceramic
Application Bass‑Midrange
Overall diameter 173 mm
Cutout Diameter/Square 146 mm
Overall depth 102 mm
Motor assembly depth 49.5 mm
Motor assembly diameter 120 mm

Vented box design parameters

Vb: 8L, Fres: 25Hz with passive radiator, -18dB @ 25Hz, Q: 0.38 (optimal A/V alignment)

Vb: 4.1L, Port diameter: 50mm, Length: 170mm, Fres: 82Hz, F-3dB: 85Hz, Q: 0.50 (typical A/V alignment)

Vb: 11L, Port diameter: 50mm, Length: 150mm, Fres: 53Hz, F-3dB: 55Hz, Q: 0.34 (extended bass)

[Translate to English:] Closed Box design parameters

[Translate to English:]

Vb: 4.1L, -18dB @ 40Hz, F-3dB: 175Hz, Q: 0.50 (clean transient response)

Vb: 11L, -15dB @ 40Hz, F-3dB: 170Hz, Q: 0.38 (extended bass for active systems)

Mechanical Data
SpecificationValueUnit
Overall diameter 173 mm
Cutout Diameter/Square 146 mm
Min. frontplate thickness 6.35 mm
Overall depth 102 mm
Motor assembly depth 49.5 mm
Motor assembly diameter 120 mm
Screwfitting DIN 7984, Ø 4,50 mm
Terminal + : 6.3 x 0.8 / - : 4.8 x 0.8 mm
Shipping weight (pair) 8.5 kg
Shipping box size (pair) 210 / 280 / 210 mm
Thiele/Small parameters
SpecificationValueUnit
Sensitivity (2.83V / 1m) Lp 91.5 dB
DC-resistance Re 6.8 Ohm
Resonance frequency Fs 53.8 Hz
Equivalent volume of air Vas 13.8 L
Mechanical Q Qms 5.6
Electrical Q Qes 0.27
Total Q Qts 0.26
Effective piston area Sd 130 cm²
Moving mass Mms 15.1 g
Suspension compliance Cms 0.58 mm/N
Mechanical resistance Rms 0.92 kg*s
voice coil parameters
SpecificationValueUnit
Power handling P 120 Watt
Linear excursion Xmax +/- 5 mm
Voice coil diameter 55 mm
Voice coil former material Ti
Voice coil material Cu
Voice coil inductance Le 0.31 mH
Force factor BI 11.35 N/A
Motor type unterhängig
Ferrofluid filling Nein

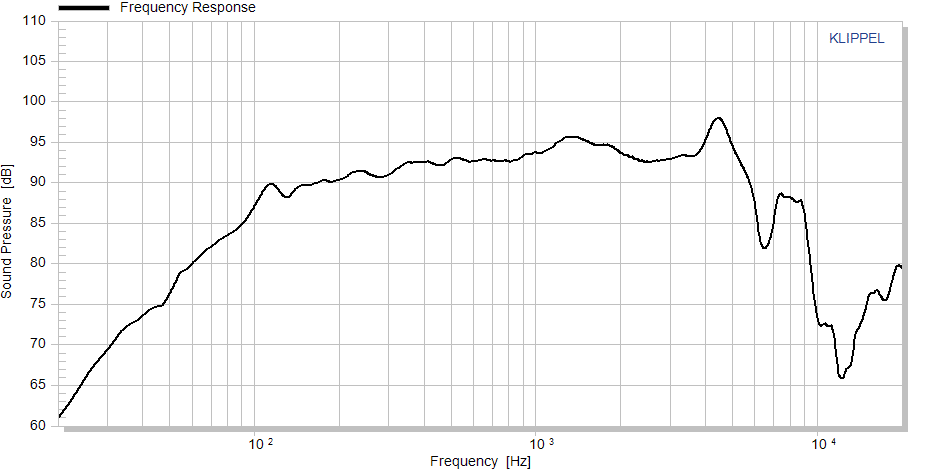

Frequency Response [DB]

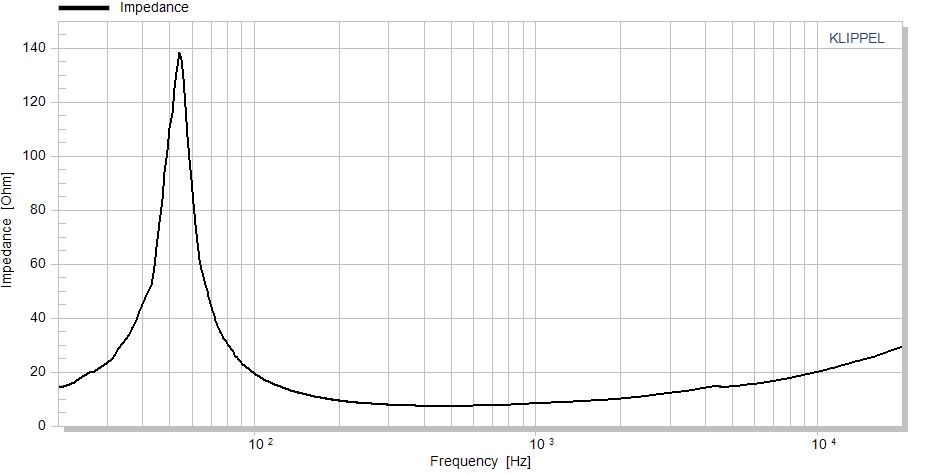

Impedance [Ohm]

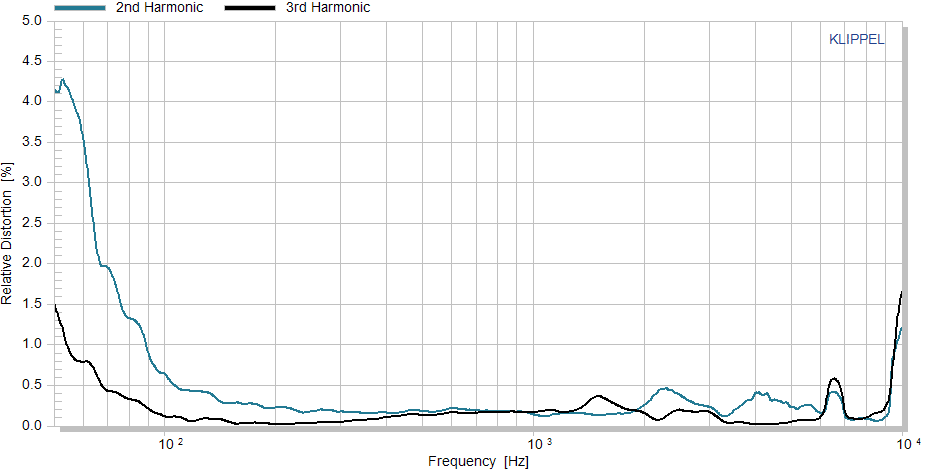

Harmonic Distortion [%]

C173-6-096-E
